Hydraulic Oil Filterability Tester
Hydraulic Oil Filterability Tester
MT-HF990

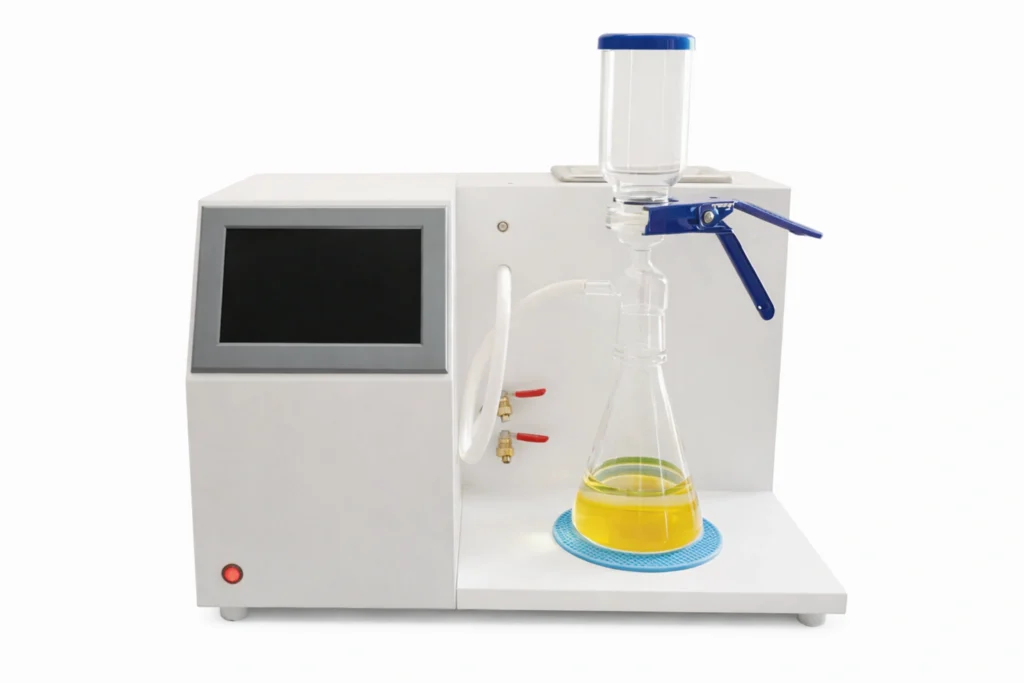

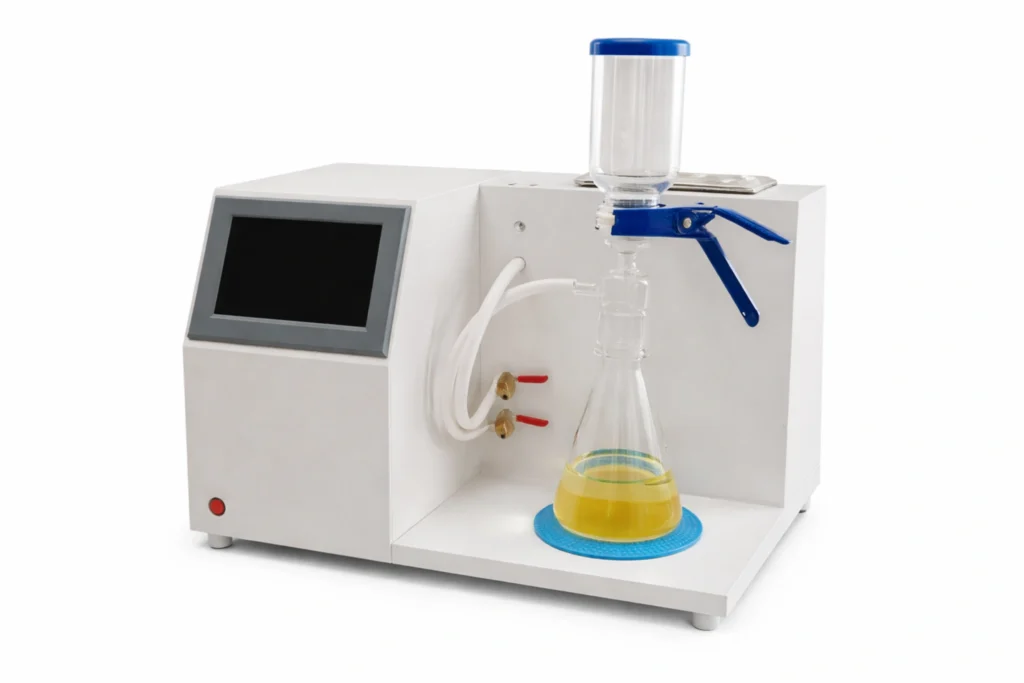

The Hydraulic Oil Filterability Tester is designed for evaluating the filterability of petroleum-based and synthetic hydraulic fluids. The instrument is manufactured according to SH/T 0210 – Test Method for Filterability of Hydraulic Oils.
Introduction
Filterability is an important performance parameter for hydraulic fluids because it reflects the ability of oil to pass through fine filtration systems without causing filter blockage. Poor filterability may lead to reduced oil flow, filter plugging, pressure drop, and unstable hydraulic system performance.
This Oil Filterability Tester adopts an integrated design that combines temperature control, vacuum filtration, and timing functions into a single compact system. It eliminates the need for external vacuum pumps and water baths, making operation more convenient and efficient.
The analyzer is widely used in lubricant manufacturing plants, hydraulic oil laboratories, petroleum refineries, industrial maintenance departments, and research institutes.
Typical Applications
The Hydraulic Oil Filterability Tester is suitable for testing:
- Petroleum-based hydraulic oils
- Synthetic hydraulic fluids
- Industrial lubricating oils
- Turbine oils
- Circulating oils
Typical application environments include:
- Lubricant manufacturing plants
- Petroleum refineries
- Hydraulic fluid testing laboratories
- Industrial maintenance departments
- Research institutes and universities
Key Features
1. Integrated Temperature Control and Filtration System
The instrument combines temperature control, vacuum filtration, and timer functions into one integrated unit, simplifying operation and maintenance.
2. 7-Inch Color Touchscreen
A 7-inch color LCD touchscreen with 800 × 480 resolution provides clear display and user-friendly operation.
3. Built-in Maintenance-Free Vacuum Pump
The analyzer uses an oil-free built-in vacuum pump with automatic program control, eliminating the need for an external vacuum source.
4. Peltier Temperature Control Module
A high-power Peltier temperature control module provides low-noise operation and stable sample temperature control.
5. High-Precision PID Temperature Control
The PID temperature control system ensures precise and stable sample temperature regulation.
6. Digital Pressure Monitoring
The instrument uses a digital pressure sensor for accurate pressure monitoring and can be calibrated with an external precision pressure gauge.
7. Compact and Easy-to-Maintain Design
The integrated structure reduces laboratory space requirements and simplifies daily maintenance.
Technical Specifications
|
Name |
MT-HF990 Hydraulic Oil Filterability Tester |
|
Display |
7-inch Color Touchscreen |
|
Temperature Range |
18 – 24°C (standard), 10 – 40°C (extended) |
|
Resolution |
800 × 480 |
|
Temperature Resolution |
0.1°C |
|
Temperature Accuracy |
±1°C |
|
Pressure Measurement Range |
-100 – 0 kPa |
|
Rated Power |
300 W |
|
Operating Environment |
Ambient Temperature: 5 – 40°C Relative Humidity: ≤ 85% |
|
Power Supply |
AC 220V ±10%, 50 Hz |
Standards Compliance
This Hydraulic Oil Filterability Tester is designed according to:
- SH/T 0210 – Test Method for Filterability of Hydraulic Oils
- ISO 13357-1 – Determination of the Filterability of Lubricating Oils, Industrial Fluids and Related Products – Part 1: Procedure for Fluids in the Presence of Water
- ISO 13357-2 – Determination of the Filterability of Lubricating Oils, Industrial Fluids and Related Products – Part 2: Procedure for Dry Fluids
Why Choose Our Hydraulic Oil Filterability Tester
Accurate Filterability Evaluation
Provides reliable measurement of the filtration performance of hydraulic fluids and lubricating oils.
Integrated Compact Design
Built-in vacuum pump and temperature control eliminate the need for external accessories.
Stable Temperature and Pressure Control
PID temperature control and digital pressure monitoring ensure repeatable testing conditions.
Quiet and Efficient Operation
The Peltier temperature control module and oil-free vacuum pump provide low-noise performance.
Ideal for Hydraulic Fluid Laboratories
Widely used in lubricant manufacturing, petroleum testing, and industrial maintenance laboratories.
