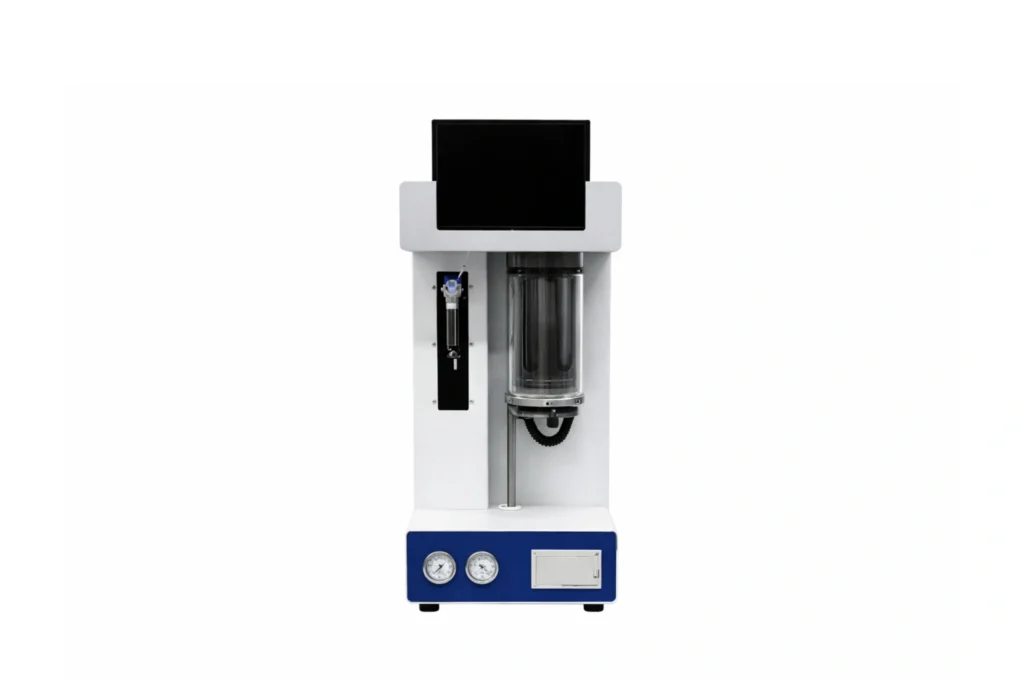

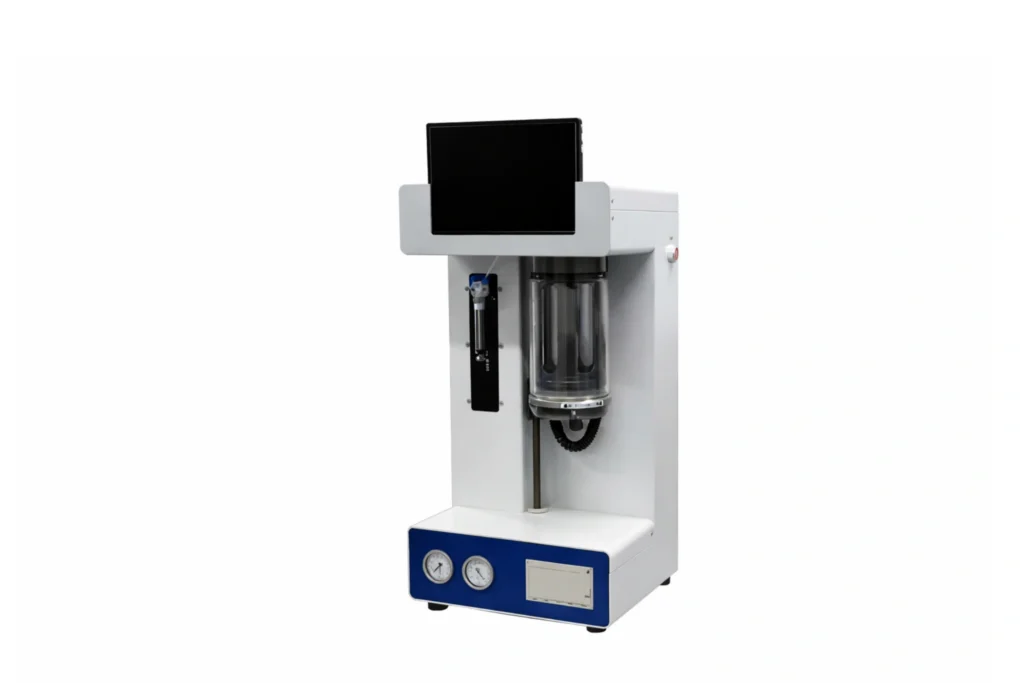

Laser Oil Particle Counter
Laser Oil Particle Counter
MT-PC703
The Laser Oil Particle Counter is a high-precision instrument designed for measuring particle contamination levels in hydraulic oil, lubricating oil, insulating oil, and other transparent liquids. The system adopts the light extinction (laser blocking) particle counting principle, which is widely recognized by international hydraulic standards.
Introduction
This Laser oil particle counter uses a high-precision semiconductor laser sensor combined with a stable sampling system to detect and classify particles across a wide size range. With 64 configurable particle size channels, the analyzer can provide detailed particle size distribution data and contamination level classification according to multiple international standards.
The instrument integrates automatic sampling, pressure monitoring, particle counting, and data analysis in a compact desktop design. It supports multiple international cleanliness standards and provides reliable contamination analysis for industrial fluid monitoring.
This particle counter is widely used in aerospace, power generation, petroleum, chemical industry, metallurgy, transportation, ports, and manufacturing industries where fluid cleanliness control is essential.
Typical Applications
The Oil Particle Counter is used for monitoring particle contamination levels in industrial fluids.
- Hydraulic oil
- Lubricating oil Insulating oil
- Turbine oil
- Fuel oil
- Transparent industrial fluids
Typical application environments include:
- Aerospace and aviation
- Power generation and power utilities
- Petroleum and petrochemical industries
- Hydraulic equipment manufacturers
- Marine and transportation industries
- Automotive manufacturing
- Metallurgical and heavy industries
Key Features
1. Laser Light Extinction Particle Counting Principle
The instrument uses the internationally recognized light extinction (laser blocking) method to accurately detect particle contamination levels in oil samples.
2. High-Precision Laser Sensor
A semiconductor laser sensor provides stable performance, low noise, and high particle detection accuracy over a wide measurement range.
3. 64 Particle Size Channels
The system supports 64 configurable particle size channels, allowing flexible particle size classification and detailed contamination analysis.
4. High Accuracy Sampling System
A high-pressure injection pump sampling system ensures stable flow rate and high sampling accuracy.
5. Automatic Degassing System
The positive and negative pressure sampling system allows effective degassing and supports testing of fluids with different viscosities.
6. Built-in Pressure Monitoring
An internal pressure sensor automatically monitors system pressure to ensure safe and stable operation.
7. Integrated Air Purification System
The system includes an internal air purification module, preventing environmental contamination during testing.
8. Advanced Data Analysis System
The built-in software automatically generates particle size distribution and contamination level classification according to selected standards.
9. Multi-Standard Calibration Support
Multiple calibration curves allow automatic calibration for different international standards.
10. Flexible Sampling Containers
The instrument supports standard sampling bottles and sampling cups, meeting testing requirements across different industries.
11. Multi-Parameter Measurement (Optional)
Optional sensors can be integrated for measuring:
- Viscosity
- Dielectric constant
- Moisture content
- Temperature
- Water activity
12. Intelligent Data Management
The system operates with a Windows-based interface, offering unlimited data storage and database management. Users can search data by:
- Test standard
- Sample name
- Batch number
- Operator
- Test date
13. Report Output and Data Export
Test results can be printed using micro or desktop printers and exported in PDF or Excel format, with data transfer via USB or WiFi.
Technical Specifications
|
Name |
MT-PC703 Laser Oil Particle Counter |
|
Light Source |
Semiconductor Laser |
|
Particle Size Range |
0.8 μm – 600 μm |
|
Sensitivity |
0.8 μm or 3 μm (c) |
|
Sampling Volume |
0.2 – 6000 mL |
|
Sampling Accuracy |
Better than ±0.2% |
|
Repeatability |
RSD < 2% |
|
Particle Size Channels |
64 |
|
Pressure Chamber |
Positive / Negative Pressure |
|
Maximum Vacuum |
0.08 MPa |
|
Maximum Positive Pressure |
1.0 MPa |
|
Power Supply |
AC 220 V ±10%, 70 W |
|
Optional Measurement Modules👇 | |
|
Temperature |
-40 – 100°C |
|
Absolute Moisture |
1 – 360 ppm |
|
Water Activity |
0 – 1 aw |
|
Dielectric Constant |
1 – 6 |
Standards Compliance
The Oil Particle Counter supports multiple international contamination classification standards, including:
- ISO 4406 – Hydraulic Fluid Power – Fluid Contamination Code
- NAS 1638 – Cleanliness Requirements of Hydraulic Fluids
- SAE AS4059E / AS4059F – Aerospace Fluid Cleanliness Classification
- GOST 17216-71 – Industrial Fluid Contamination Standard
- DL/T 1096 – Power Industry Oil Cleanliness Standard
These standards are widely used for hydraulic system contamination monitoring and oil cleanliness analysis.
Why Choose Our Laser Oil Particle Counter
Accurate Particle Contamination Analysis
High-precision laser detection ensures reliable measurement of particle size distribution and contamination levels.
Multi-Standard Compatibility
Supports a wide range of international oil cleanliness standards used across different industries.
Intelligent Data Management
Built-in database allows efficient data storage, retrieval, and report generation.
Flexible Testing Capability
Optional sensors enable multi-parameter analysis including moisture, viscosity, and temperature.
Widely Used in Industrial Fluid Monitoring
Ideal for hydraulic systems, turbine lubrication systems, and industrial oil monitoring applications.
