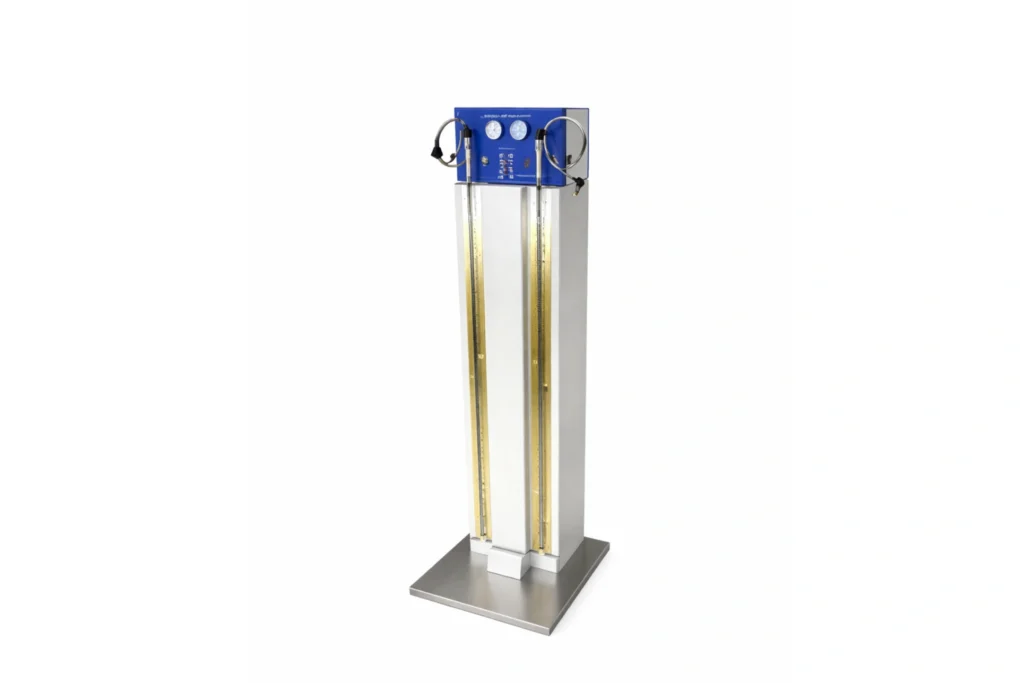

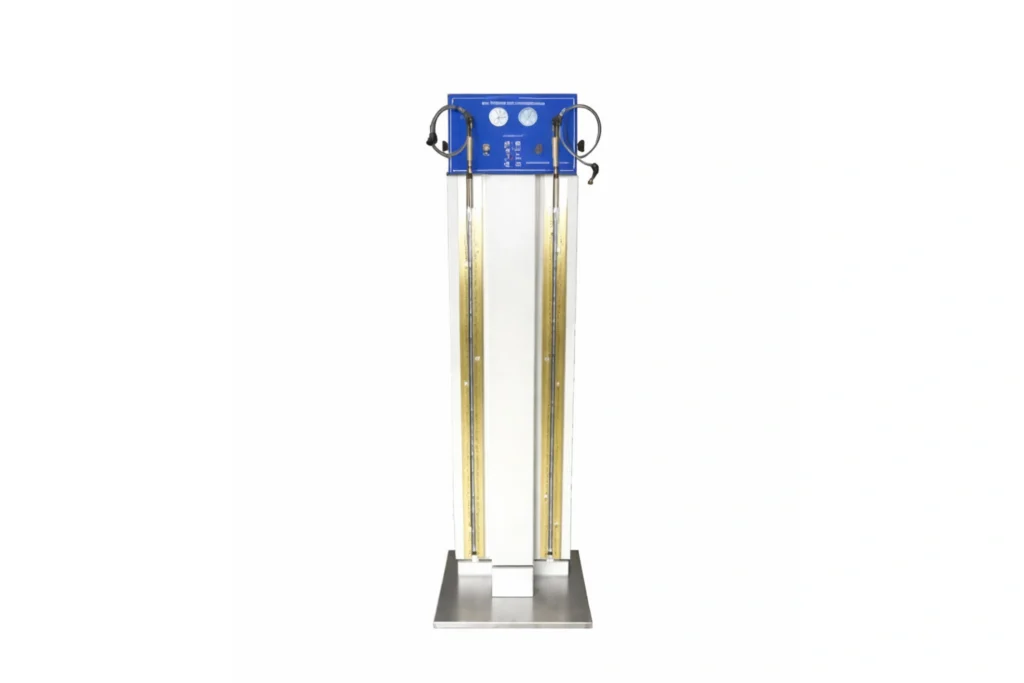

ASTM D1319 Hydrocarbon Type Tester
ASTM D1319 Hydrocarbon Type Tester
MT-HT506
The ASTM D1319 Hydrocarbon Type Analyzer is designed for determining the volume percentages of aromatic hydrocarbons, olefins, and saturated hydrocarbons in liquid petroleum products.
Introduction
The ASTM D1319 Hydrocarbon Type Tester is manufactured in accordance with GB/T 11132 – Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption and is equivalent to ASTM D1319. The method uses fluorescent indicator adsorption (FIA) technology to separate and identify hydrocarbon types in petroleum distillates.
During the test, the petroleum sample mixed with fluorescent indicator is introduced into a silica gel adsorption column, where different hydrocarbon types separate and form visible bands under ultraviolet illumination. By measuring the length of each band, the volume percentage of aromatics, olefins, and saturated hydrocarbons can be determined.
Hydrocarbon composition is an important quality indicator for motor gasoline, aviation fuel, and other petroleum distillates, as it directly influences fuel performance, combustion characteristics, and emissions.
This instrument is widely used in petroleum refineries, fuel testing laboratories, aviation fuel quality control laboratories, and research institutes.
Typical Applications
The Hydrocarbon Type Analyzer is used for determining the hydrocarbon composition of petroleum distillates.
- Motor gasoline
- Aviation gasoline
- Jet fuel
- Naphtha
- Petroleum distillates
Typical application environments include:
- Petroleum refineries
- Fuel production plants
- Aviation fuel testing laboratories
- Petrochemical research institutes
- Inspection and certification laboratories
Key Features
1. Fluorescent Indicator Adsorption Method
The instrument adopts the fluorescent indicator adsorption (FIA) method, enabling accurate separation and determination of hydrocarbon types in petroleum products.
2. Hydrocarbon Type Determination
The analyzer determines the volume percentages of:
- Aromatic hydrocarbons
- Olefinic hydrocarbons
- Saturated hydrocarbons
3. Dual Electric Vibrator Control
Two independent electric oscillators allow flexible and stable operation during the test process.
4. UV Fluorescent Detection System
The instrument is equipped with a long ultraviolet lamp (365 nm) that clearly displays the separated hydrocarbon bands inside the adsorption column.
5. Uniform Illumination System
A 40 W illumination lamp provides stable lighting conditions for accurate reading of band lengths.
6. Adjustable Pressure Control
The pressure regulator allows precise control of carrier gas pressure from 0 to 400 kPa, ensuring stable column operation.
7. Flexible Gas Supply Options
The instrument supports nitrogen cylinders, compressed air cylinders, or air compressors as the gas supply source.
Technical Specifications
|
Name |
MT-HT506 ASTM D1319 Hydrocarbon Type Tester |
|
Pressure Regulator Range |
0 – 400 kPa |
|
Electric Vibrator |
Two channels independently controlled |
|
UV Light Source |
Length 1220 mm, wavelength 365 nm ±5 nm |
|
Illumination Lamp |
Length 1220 mm, 40 W |
|
Gas Supply |
Nitrogen cylinder / compressed air |
|
Operating Temperature |
5 – 35°C |
|
Power Supply |
AC 220 V ±5%, 50 Hz |
Standards Compliance
This Hydrocarbon Type Tester is designed according to the following standards:
- ASTM D1319 – Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption
- GB/T 11132 – Determination of Hydrocarbon Types in Liquid Petroleum Products (Fluorescent Indicator Adsorption Method)
These standards are widely used for evaluating the composition of petroleum distillates used as engine fuels and aviation fuels.
Why Choose Our ASTM D1319 Hydrocarbon Tester
Accurate Hydrocarbon Composition Analysis
Provides reliable measurement of aromatic, olefinic, and saturated hydrocarbons in petroleum fuels.
Standard FIA Testing Method
The instrument adopts the internationally recognized fluorescent indicator adsorption method.
Stable and Easy Operation
Independent vibration control and adjustable pressure system ensure stable experimental conditions.
High Visibility Detection
UV illumination clearly reveals hydrocarbon bands for accurate measurement.
Ideal for Fuel Quality Laboratories
Widely used in petroleum refineries, aviation fuel laboratories, and fuel inspection agencies.
