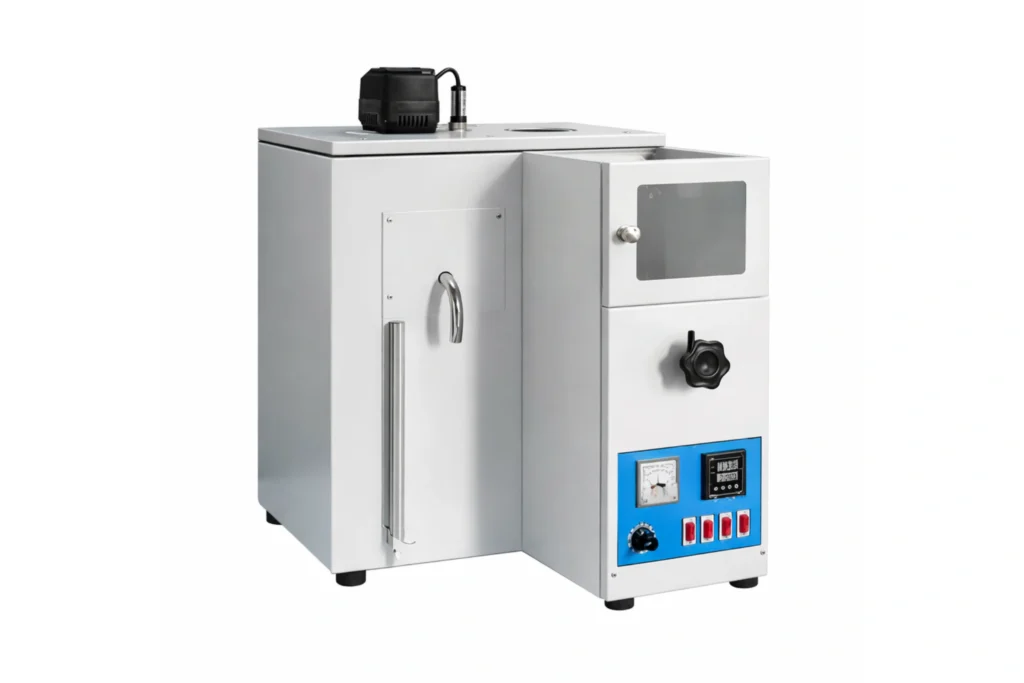

Petroleum Distillation Analyzer
Petroleum Distillation Analyzer
MT-DL334
The Petroleum Distillation Analyzer is designed for determining the distillation characteristics and fraction composition of liquid fuels, solvent oils, and light petroleum products.
Introduction
The instrument is manufactured in accordance with the requirements of GB/T 255 – Test Method for Distillation Characteristics of Petroleum Products and SH/T 0121 – Technical Conditions for Petroleum Product Distillation Apparatus.
Distillation analysis is an essential laboratory method used to evaluate the boiling range distribution and volatility properties of petroleum products. The distillation curve obtained during the test helps determine the composition and performance characteristics of fuels and light petroleum fractions.
This distillation analyzer provides a stable heating system, reliable condensation structure, and precise temperature measurement, making it suitable for routine petroleum laboratory analysis and quality control testing.
The instrument is widely used in petroleum laboratories, petrochemical plants, fuel testing facilities, and research institutions.
Typical Applications
The Petroleum Distillation Analyzer is used to determine the distillation range and fraction composition of various petroleum-based liquids.
- Liquid fuels
- Solvent oils
- Light petroleum products
- Petroleum distillates
- Volatile hydrocarbon mixtures
Typical application environments include:
- Petroleum refineries
- Petrochemical laboratories
- Fuel quality control laboratories
- Research institutions
- Inspection and testing organizations
Key Features
1. Integrated Lifting Heating Furnace
The instrument adopts an integrated lifting mechanism, allowing the heating furnace to move up and down smoothly for convenient adjustment during distillation tests.
2. Corrosion-Resistant Stainless Steel Water Bath
The water bath is constructed from high-quality stainless steel, providing excellent corrosion resistance and long-term durability in laboratory environments.
3. Electronic Voltage Regulation Heating System
The heating furnace uses electronic voltage regulation technology, enabling continuous and stepless adjustment of heating power to achieve precise heating control during distillation.
4. Reliable Condensation System
The condenser tank is made of stainless steel, while the condenser tube is manufactured from precision brass tubing, ensuring efficient vapor condensation during the distillation process.
5. High-Temperature Resistant Distillation Flask
The distillation flask is made of hard glass capable of withstanding temperatures above 500°C, ensuring safe operation during high-temperature distillation tests.
6. Standard Laboratory Temperature Measurement
The instrument uses a 0–360°C laboratory thermometer with 1°C graduation, compliant with GB/T 514 standards.
Technical Specifications
|
Name |
MT-DL334 ASTM D86 Automatic Distillation Tester |
|
Distillation Flask |
Material: Hard glass Heat resistance: Above 500°C Flask bulb diameter: Φ69 mm ±1 mm Neck diameter: Φ16 mm ±1 mm Angle between side arm and neck: 75° ±3° |
|
Electric Furnace Gasket |
Material: Silicon carbide Outer diameter: Φ105 mm Inner diameter: Φ50 mm / Φ30 mm |
|
Thermometer |
Temperature range: 0 – 360°C Graduation: 1°C Standard: GB/T 514 |
|
Condenser Tank |
Material: Stainless steel Condenser tube: Φ16 mm × 1 mm brass tube |
|
Heating Control |
Heating device with thyristor temperature control circuit Continuously adjustable heating rate |
|
Environmental Conditions |
Ambient temperature: -10°C – +35°C Relative humidity: ≤85% |
|
Power Supply |
AC 220V ±10%, 50Hz |
|
Total Power Consumption |
≤1100 W |
Standards Compliance
This Petroleum Distillation Analyzer complies with the following standards:
- GB/T 255 – Test Method for Distillation Characteristics of Petroleum Products
- SH/T 0121 – Technical Conditions for Petroleum Product Distillation Apparatus
- GB/T 514 – Laboratory Thermometers
Why Choose Our Petroleum Distillation Analyzer
Reliable Petroleum Distillation Testing
Designed specifically for determining distillation characteristics of fuels and light petroleum products.
Stable Heating Control
Electronic voltage regulation provides smooth and continuous heating adjustment for accurate distillation tests.
Durable Laboratory Construction
Stainless steel bath structure ensures excellent corrosion resistance and long service life.
Easy Operation and Adjustment
The integrated lifting heating furnace allows convenient positioning and smooth operation during distillation.
Suitable for Routine Laboratory Testing
Ideal for petroleum laboratories, refineries, fuel inspection laboratories, and research institutions.
