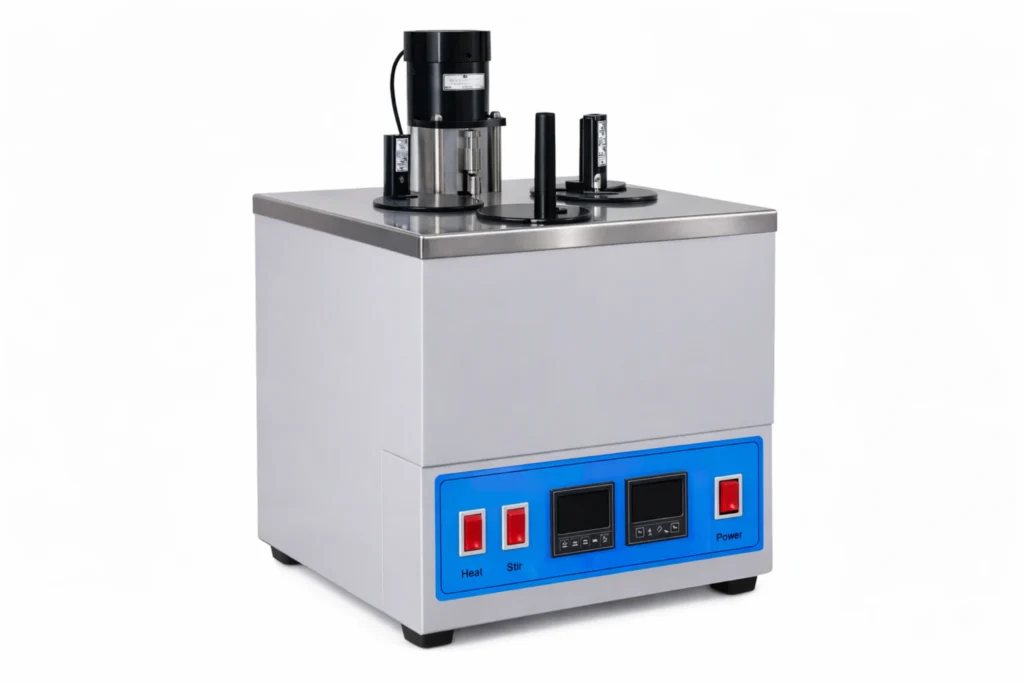

ASTM D130 Copper Corrosion Tester
ASTM D130 Copper Corrosion Tester
MT-CS506
The ASTM D130 Copper Corrosion Tester is designed for evaluating the corrosiveness of petroleum products to copper according to ASTM D130, GB/T 5096, and ISO 2160 standards.
Introduction
Copper strip corrosion testing is widely used to determine the presence of corrosive sulfur compounds in petroleum products. During the test, a polished copper strip is immersed in the sample and heated under controlled temperature conditions. After the test period, the copper strip is compared with a standard corrosion scale to evaluate the corrosive properties of the sample.
The Copper Corrosion Tester integrates precise temperature control, automatic timing, and alarm functions, providing stable and reliable test conditions for petroleum laboratories.
It is widely used for evaluating the corrosion characteristics of fuels and lubricants such as aviation gasoline, aviation turbine fuel, automotive gasoline, kerosene, solvents, tractor fuel, and lubricating oils.
Typical Applications
The Copper Corrosion Tester is suitable for testing:
- Aviation gasoline
- Aviation turbine fuel
- Automotive gasoline
- Kerosene fuels
- Diesel fuels
- Solvent oils
- Lubricating oils
Typical application environments include:
- Petroleum refineries
- Fuel quality inspection laboratories
- Aviation fuel testing laboratories
- Lubricant manufacturers
- Research and testing institutions
Key Features
1. Intelligent Temperature Control System
The instrument uses an advanced temperature controller to maintain precise temperature regulation with an accuracy of ±0.1°C, ensuring stable testing conditions.
2. High-Precision PT100 Temperature Sensor
An A-class PT100 temperature sensor provides high measurement accuracy and excellent temperature stability.
3. Durable Stainless Steel Construction
Heating components are made of stainless steel, providing strong corrosion resistance and long service life.
4. Stable Magnetic Stirring System
The stirring system adopts a permanent magnet motor with stable rotation speed, low noise, and compact structure.
5. Automatic Timing and Alarm Function
The system includes an automatic timer with alarm notification when the test time is completed, ensuring accurate testing procedures.
6. Multi-Sample Testing Capacity
The instrument supports multiple test positions, allowing several samples to be analyzed simultaneously to improve laboratory efficiency.
Technical Specifications
|
Name |
MT-CS506 ASTM D130 Copper Corrosion Tester |
|
Display |
LED Digital Display |
|
Measurement Range |
Room Temperature to 150°C |
|
Temperature Sensor |
Class A PT100 |
|
Temperature Accuracy |
±0.1°C |
|
Test Positions |
Four positions |
|
Timing Range |
0.01 s – 99 h 99 min |
|
Sample Capacity |
3 – 12 samples |
|
Heating Power |
2000 W |
|
Operating Environment |
Room temperature to 35°C, humidity≤ 85% |
|
Power Supply |
AC 220V ±10%, 50 Hz |
|
Maximum Power Consumption |
≤ 2100 W |
Standards Compliance
This Copper Corrosion Tester complies with:
- ASTM D130 – Standard Test Method for Corrosiveness to Copper from Petroleum Products
- GB/T 5096 – Copper Strip Corrosion Test for Petroleum Products
- ISO 2160 – Petroleum Products Corrosiveness to Copper Test
- IP 154 – Determination of Corrosiveness to Copper
Why Choose Our Copper Corrosion Tester
Accurate Corrosion Evaluation
Precise temperature control ensures reliable copper corrosion testing.
Multi-Sample Testing Efficiency
Multiple test positions allow simultaneous analysis of several samples.
Stable Temperature Control
High-precision PT100 sensor ensures stable and repeatable test conditions.
Durable Industrial Design
Stainless steel heating components provide excellent durability and corrosion resistance.
Easy Operation
Simple LED interface and automatic timer make the instrument easy to operate.
Reliable Laboratory Performance
Designed for continuous operation in petroleum testing laboratories.
