Automatic Pharmaceutical Congealing Point Tester
Automatic Pharmaceutical Congealing Point Tester
MT-CP403
The Automatic Pharmaceutical Congealing Point Tester is designed for determining the congealing point of pharmaceutical substances in accordance with the Chinese Pharmacopoeia congealing point determination method.
Introduction
The congealing point refers to the highest temperature at which a substance remains constant for a short period when it changes from liquid to solid during cooling. This parameter is widely used to evaluate the purity and quality of pharmaceutical materials, since impurities can significantly affect the congealing point.

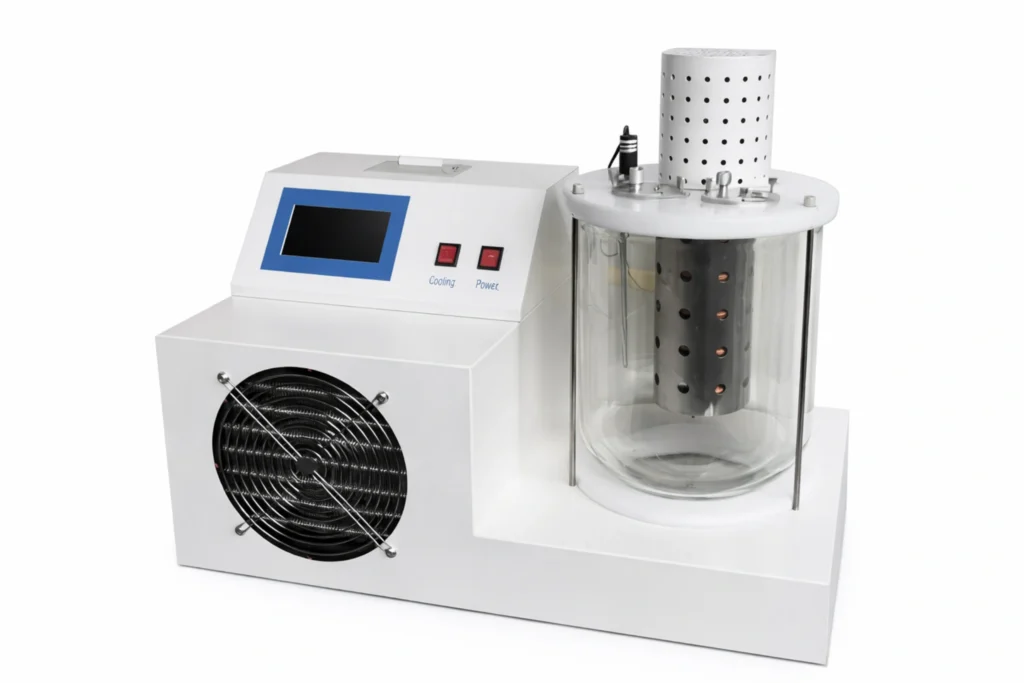

The Automatic Pharmaceutical Congealing Point Tester adopts a high-precision temperature control system and advanced refrigeration technology to automatically detect the congealing point of pharmaceutical samples. A transparent Dewar insulation bottle allows operators to visually observe the crystallization process during testing.
It is widely used in pharmaceutical laboratories, quality control departments, research institutes, and pharmaceutical manufacturing facilities.
Typical Applications
The Automatic Pharmaceutical Congealing Point Tester is suitable for testing:
- Pharmaceutical raw materials
- Organic chemical substances
- Pharmaceutical intermediates
- Medical chemical products
Typical application industries include:
- Pharmaceutical manufacturing companies
- Drug quality control laboratories
- Research institutes and universities
- Pharmaceutical inspection agencies
Key Features
1. Intelligent Touchscreen Control System
The instrument features a color touchscreen interface with Chinese and English operation, allowing easy parameter setting and real-time monitoring of test conditions.
2. Automatic Congealing Point Detection
The instrument automatically monitors the temperature change during cooling and determines the congealing point according to pharmacopoeia procedures.
3. Transparent Dewar Observation System
A transparent Dewar insulation bottle allows direct observation of the crystallization process, improving testing reliability and operator convenience.
4. High-Precision Temperature Control
The microcontroller-based temperature control system ensures high temperature accuracy of ±0.1°C and excellent temperature uniformity.
5. High-Performance Refrigeration System
The compressor refrigeration system provides rapid cooling and stable low-temperature performance without the need for circulating water.
6. Automatic Fault Diagnosis
The instrument includes an automatic diagnostic function to detect operational errors and prevent measurement inaccuracies.
7. Large Data Storage Capacity
The system can store 300 test records, with optional storage expansion up to 500GB, enabling convenient laboratory data management.
Technical Specifications
|
Name |
MT-CP403 Automatic ASTM D2500 Cloud Point Tester |
|
Display |
English Color Touchscreen |
|
Measurement Range |
–75°C to 100°C |
|
Resolution |
0.1°C |
|
Temperature Accuracy |
±0.1°C |
|
Test Positions |
2 test positions |
|
Cooling Rate |
≥ 50°C / hour |
|
Refrigeration System |
Compressor refrigeration |
|
Heating Method |
Stainless steel electric heating tube |
|
Timing Range |
99h 99m 99s |
|
Temperature Uniformity |
±0.1°C |
|
Operating Temperature |
–5°C to 40°C |
|
Relative Humidity |
≤ 80% |
|
Power Supply |
AC 220V ±10%, 50 Hz |
|
Power Consumption |
2 kW |
|
Weight |
Approx. 48 kg |
Standards Compliance
This Automatic Pharmaceutical Congealing Point Tester complies with:
- Chinese Pharmacopoeia – Congealing Point Determination Method
Why Choose Our Pharmaceutical Congealing Point Tester
Accurate Pharmaceutical Quality Analysis
High-precision temperature control ensures reliable determination of drug congealing points.
Automated Operation
Automatic detection and data recording simplify laboratory testing procedures.
Visual Observation Capability
Transparent Dewar flask allows direct observation of the crystallization process.
Stable Temperature Control
Advanced refrigeration and heating systems ensure stable testing conditions.
Reliable Laboratory Equipment
Robust construction ensures long-term stable operation in pharmaceutical laboratories.
