Karl Fischer Coulometric Trace Moisture Analyzer
MT-MC806
Karl Fischer Coulometric Titration Method for water content analysis in liquid, solid, and gaseous samples, covering a range from 0.0001% (1 ppm) to 100%.
Introduction

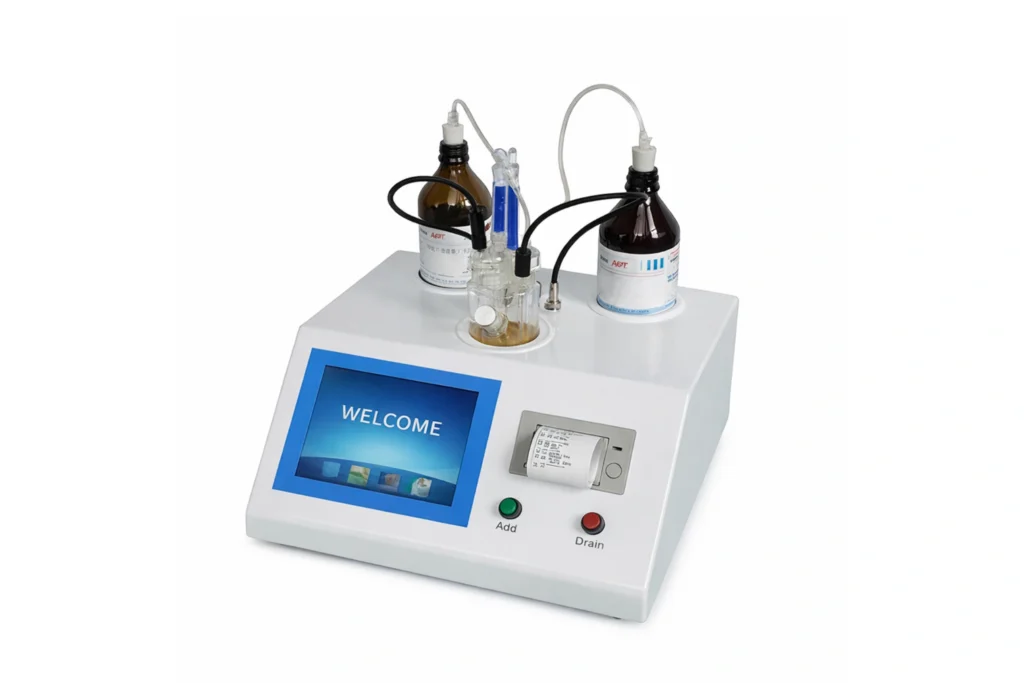

Our Karl Fischer Coulometric Trace Moisture Analyzer adopts the classic moisture measurement method, the Karl Fischer Coulometric Titration, and can quickly analyze moisture content in liquid, solid, and gas samples within a range of 0.0001% (1ppm) to 100% in just one minute. It can automatically calculate the percentage, ppm mg/L values of moisture content, as well as automatically replace reagents, requiring no manual operation.
Test Principle
Our trace moisture analyzers operate on the Karl Fischer coulometric/volumetric titration method, where iodine reacts quantitatively with water in the presence of sulfur dioxide and a suitable solvent. The amount of iodine consumed is directly proportional to the water content of the sample, enabling accurate moisture determination.
Typical Applications
- Insulating oil and transformer oil
- Lubricating oils and hydraulic oils
- Fuels (diesel, gasoline, kerosene)
- Crude oil and petroleum products
- Chemical solvents and reagents
- Pharmaceuticals and raw materials
Key Features
1. Intelligent Microprocessor Control
This trace moisture analyzer is controlled by an STM microprocessor for precise and automated moisture determination.
2. Large Color Touchscreen Interface
65K color touchscreen (800×600 resolution) displays real-time status and results with intuitive operation.
3. Fully Automated Reagent Handling
Automatic reagent injection and waste disposal prevent operator contact with chemicals.
4. Corrosion-Resistant, Easy-to-Clean Surface
The exterior surface is treated with electrostatic spraying for corrosion resistance and easy cleaning.
5. Automatic Blank Current Compensation
The blank current is automatically compensated by the microprocessor, allowing the reagent to quickly reach a balanced state.
6. High Sensitivity and Fast Analysis
A 430 mA large electrolysis current ensures high detection sensitivity and fast analysis speed.
7. Automatic Data Storage
Measurement results are automatically stored (up to 500 records), and historical data can be accessed at any time.
8. Comprehensive Report Generation
Automatically calculates and prints results, including ug, ppm, percentage content, mg/L, sample name, experiment date, and more.
9. USB/RS232 Connectivity
Supports USB or RS232 interfaces for communication with laptops or computers, enabling network management.
10. Multi-language Display and Upgradeable Program
Multiple language options for operation display, and the instrument’s program can be upgraded when national standards are revised.
Technical Specifications
|
Name |
MT-WC806 Karl Fischer Coulometric Trace Moisture Analyzer |
|
Display |
65K 10-inch English color touchscreen (Resolution: 800×600 pixels) |
|
Measurement Method |
Microprocessor-controlled Karl Fischer volumetric titration |
|
Electrolysis Speed |
2.4 mg of water per minute |
|
Electrolysis Current |
0-430 mA, automatic control |
|
Measurement Range |
0.01 µg water to 200 mg water |
|
Moisture Content Range |
0.0001% (10 ppm) – 100% |
|
Sensitivity |
0.01 µg of water |
|
System Accuracy |
For water content between 10 µg and 1000 µg, the error is ≤ ±3 µg; for water content above 1000 µg, the error is ≤ ±0.2% (excluding sample injection error) |
|
Drift Compensation |
Automatic drift compensation controlled by microprocessor |
|
Stirring Speed |
Adjustable stirring speed control |
|
Endpoint Indication |
Screen display / Print output / Sound alarm / End-point light indication |
|
Data Input |
Touchscreen input operation |
|
Sample Number |
User-defined |
|
Storage Function |
500 records |
|
Printer |
Low-power, high-speed thermal printer, 56 mm paper width |
|
Print Content |
µg / Percentage content / ppm / mg/L / Sample number / Operator / Date |
|
Calendar/Clock |
Analysis time and date display, with printed output |
|
Self-Diagnosis Function |
Automatic instrument fault detection and diagnosis |
|
Special Function |
Can be connected to a laptop or other computers for online operation, or can function independently |
|
Power Consumption |
Less than 40 W |
|
Dimensions (W × D × H) |
390 × 300 × 170mm |
|
Operating Conditions |
Temperature: 5°C – 40°C, Humidity: < 85% RH |
|
Power Supply |
AC 220 V ±10%, 50 Hz ±2.5 Hz |
|
Weight |
7.3 kg |
Applicable Standards / Compliance Standards
Karl Fischer Coulometric Method for Water Content Determination
1. General Chemical Products
- GB/T 6283-2008 – Determination of Water Content in Chemical Products — Karl Fischer Method
- ASTM E1064-2008 – Standard Test Method for Water Content of Organic Liquids by Coulometric Karl Fischer Titration
2. Petroleum, Crude Oil & Lubricant
- ASTM D4928-00 (2010) – Standard Test Method for Water Content of Crude Oils by Coulometric Karl Fischer Titration
- ASTM D6304-2007 – Standard Test Method for Determination of Water in Petroleum Products, Lubricating Oils, and Additives by Coulometric Karl Fischer Titration
- ISO 10337:1997 – Crude Petroleum — Determination of Water — Coulometric Karl Fischer Titration Method
- GB/T 11146-2009 – Crude Oil — Determination of Water Content — Karl Fischer Coulometric Method
- SH/T 0246-1992 – Test Method for Water Content in Light Petroleum Products (Coulometric Method)
- SH/T 0255-1992 – Test Method for Water Content in Additives and Lubricating Oils Containing Additives (Coulometric Method)
3. Transformer Oil & Electrical Insulating Oils
- GB/T 7600-1987 – Determination of Water Content in In-service Transformer Oil — Coulometric Method
4. Industrial Gases & Petrochemical Products
- GB/T 3727-2003 – Determination of Trace Water in Industrial Ethylene and Propylene
- GB/T 6023-2008 – Determination of Trace Water in Industrial Butadiene — Karl Fischer Coulometric Method
- GB/T 7376-2008 – Determination of Trace Water in Industrial Fluorinated Alkanes — Karl Fischer Method
- GB/T 18619.1-2002 – Natural Gas — Determination of Water Content — Karl Fischer Coulometric Method
- GB/T 18826-2002 – Industrial 1,1,1,2-Tetrafluoroethane (HFC-134a)
5. Coking & Coal Chemical Products
- GB/T 5074-1985 – Micro-coulometric Determination of Water Content in Coking Products
Why Choose Our Trace Moisture Analyzer
1. Proven Karl Fischer Technology
Based on the Karl Fischer coulometric titration method, ensuring accurate and reliable trace moisture determination.
2. Designed for Trace-Level Analysis
Measures water content from 1 ppm (0.0001%) to 100%, ideal for insulating oil and petroleum products.
3. Fast and Fully Automated Operation
Typical analysis completed within one minute with automatic reagent handling and result calculation.
4. User-Friendly Touchscreen Interface
65K color touchscreen (800 × 600 resolution) for clear display and easy operation.
5. Safe and Durable Design
Automatic reagent replacement reduces operator exposure; corrosion-resistant housing ensures long service life.
6. Data Storage and Connectivity
Stores up to 500 results and supports USB and RS232 communication.
