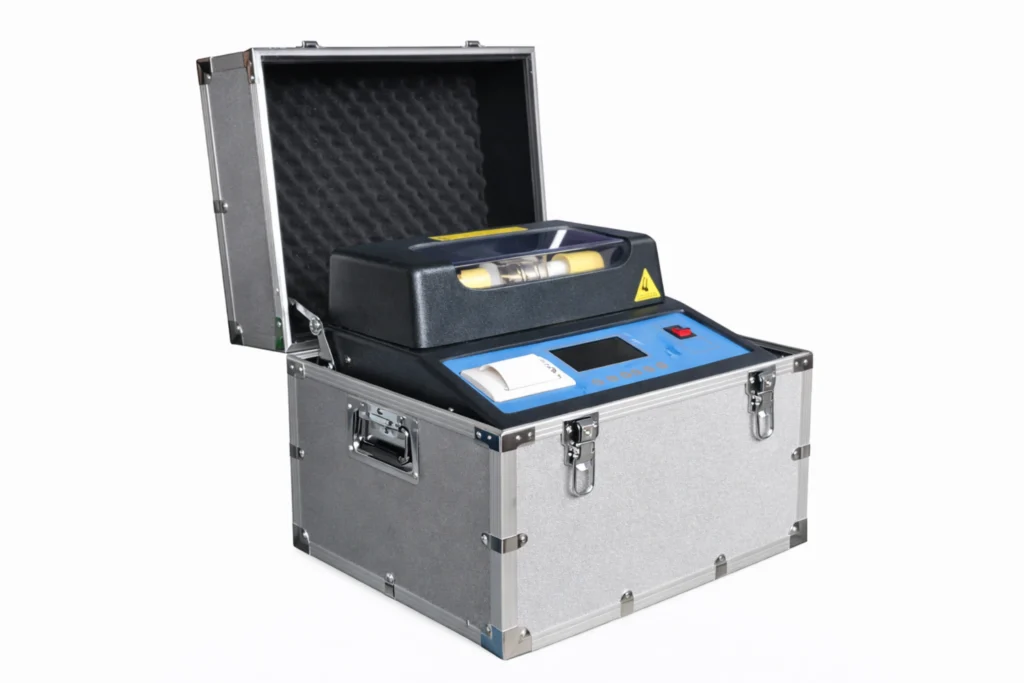

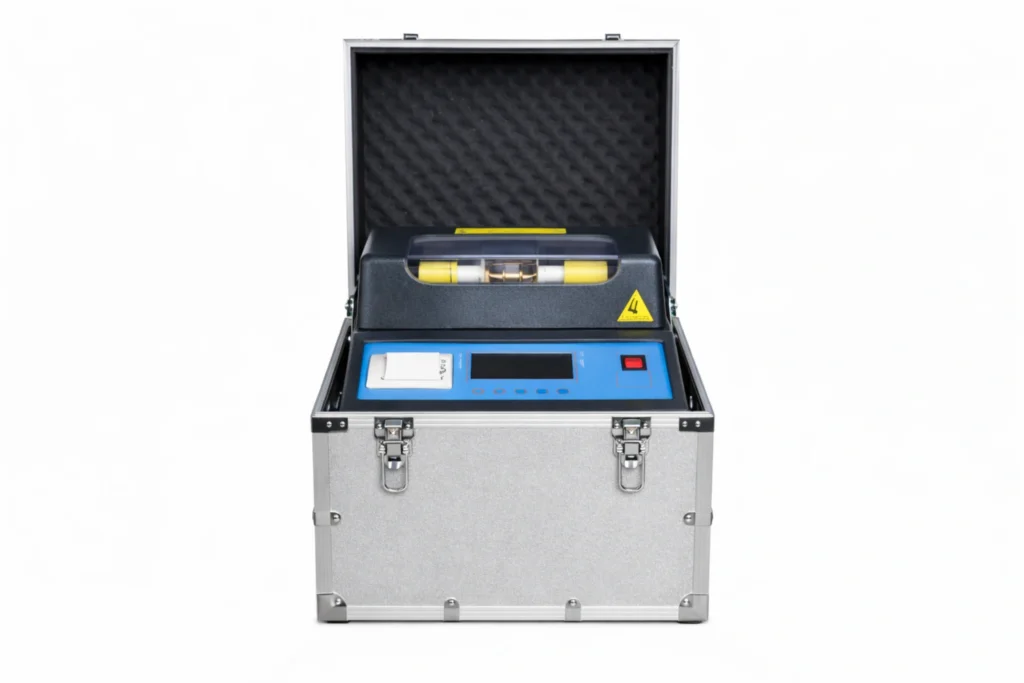

Insulating Oil Breakdown Voltage Analyzer
Insulating Oil Breakdown Voltage Analyzer
MT-DS902
The Insulating Oil Breakdown Voltage Analyzer is designed for evaluating the electrical insulation performance of insulating oils used in power equipment. The instrument is manufactured in accordance with ASTM D877, GB/T 507 and DL 429.9 standards.
Introduction
Breakdown voltage testing is one of the most important methods for assessing the dielectric integrity of insulating liquids. Contaminants such as moisture, suspended particles, or aging products can significantly reduce the insulating capability of transformer oil and other insulating fluids.
This Oil Breakdown Voltage Analyzer uses a microprocessor-based control system to perform automatic breakdown voltage testing of insulating oils. The system automatically executes voltage ramping, oil agitation, resting periods, breakdown detection, and result calculation, ensuring stable and repeatable measurements.
The tester is widely used in power utilities, transformer manufacturing plants, petroleum laboratories, and electrical equipment maintenance departments.
Typical Applications
The Insulating Oil Breakdown Voltage Analyzer is suitable for dielectric strength evaluation of:
- Transformer insulating oils
- Electrical insulating liquids
- Mineral insulating oils
- Industrial insulation fluids
Typical application environments include:
- Electrical power utilities
- Transformer service laboratories
- Oil analysis laboratories
- Petrochemical testing facilities
- Industrial maintenance departments
Key Features
1. Automated Breakdown Voltage Testing
The instrument performs the entire breakdown voltage testing process automatically, including voltage increase, sample agitation, stabilization period, and breakdown detection.
2. Configurable Test Cycles
Users can select 1 to 6 breakdown test cycles, allowing accurate evaluation of oil insulation quality through repeated measurements.
3. Intelligent Data Recording System
The instrument automatically records each breakdown voltage result and calculates the average value for accurate analysis.
4. Built-in Thermal Printing
After testing, the integrated thermal printer outputs individual breakdown voltage values as well as the calculated average result.
5. Environmental Condition Monitoring
The system displays ambient temperature and humidity, providing reference conditions for laboratory oil testing.
6. Reliable Safety Protection
Multiple protection mechanisms including over-voltage protection, over-current protection, and limit protection ensure safe operation during testing.
Technical Specifications
|
Name |
MT-DS902 Insulating Oil Breakdown Voltage Analyzer |
|
Temperature Control |
0 – 80 kV (optional) |
|
Voltage Distortion Rate |
≤ 3% |
|
Voltage Rise Speed |
2.0 – 3.5 kV/s |
|
Resting Time |
15 minutes (adjustable) |
|
Test Interval |
15 minutes (adjustable) |
|
Test Cycles |
1 – 6 times |
|
Transformer Capacity |
1.5 kVA |
|
Measurement Accuracy |
±(2% + 2 digits) |
|
Power Consumption |
500 W |
|
Operating Environment |
10 to 40°C, humidity 30% – 85% |
|
Power Supply |
AC 220V ±10%, 50 Hz |
|
Dimensions |
470 × 385 × 450 mm |
Standards Compliance
This Insulating Oil Breakdown Voltage Analyzer complies with:
- ASTM D877 – Dielectric Breakdown Voltage of Insulating Liquids
- IEC 60156 – Determination of Breakdown Voltage of Insulating Liquids
- DL 429.9 – Electrical Insulating Oil Test Standard
- GB/T 507 – Test Method for Breakdown Voltage of Insulating Oil
Why Choose Our Insulating Oil Breakdown Voltage Analyzer
Reliable Insulation Performance Evaluation
Provides accurate measurement of insulating oil breakdown voltage for electrical equipment maintenance.
Automated Testing Procedure
Fully automated testing reduces operator workload and ensures consistent testing conditions.
Flexible Test Configuration
Multiple adjustable parameters allow laboratories to customize testing procedures.
Efficient Data Recording
Automatic result storage and printing simplify laboratory documentation.
Safe Operation
Integrated safety protection systems ensure reliable operation during high-voltage testing.
Designed for Electrical Oil Analysis
Suitable for transformer maintenance laboratories and electrical equipment manufacturers.
